Woodworking CNC router machine

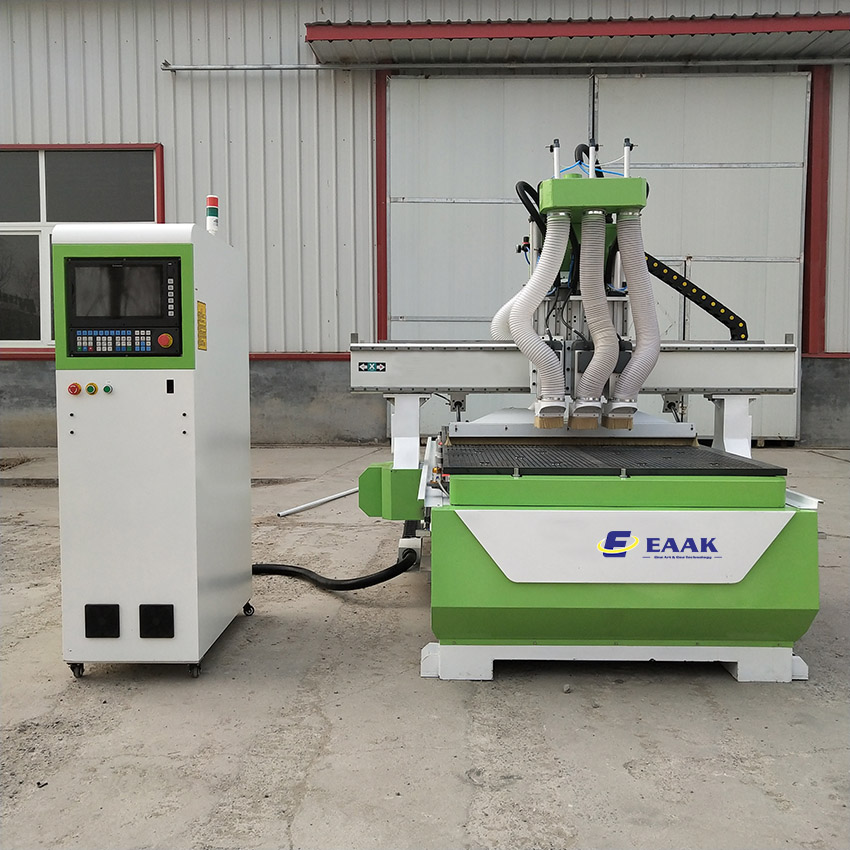

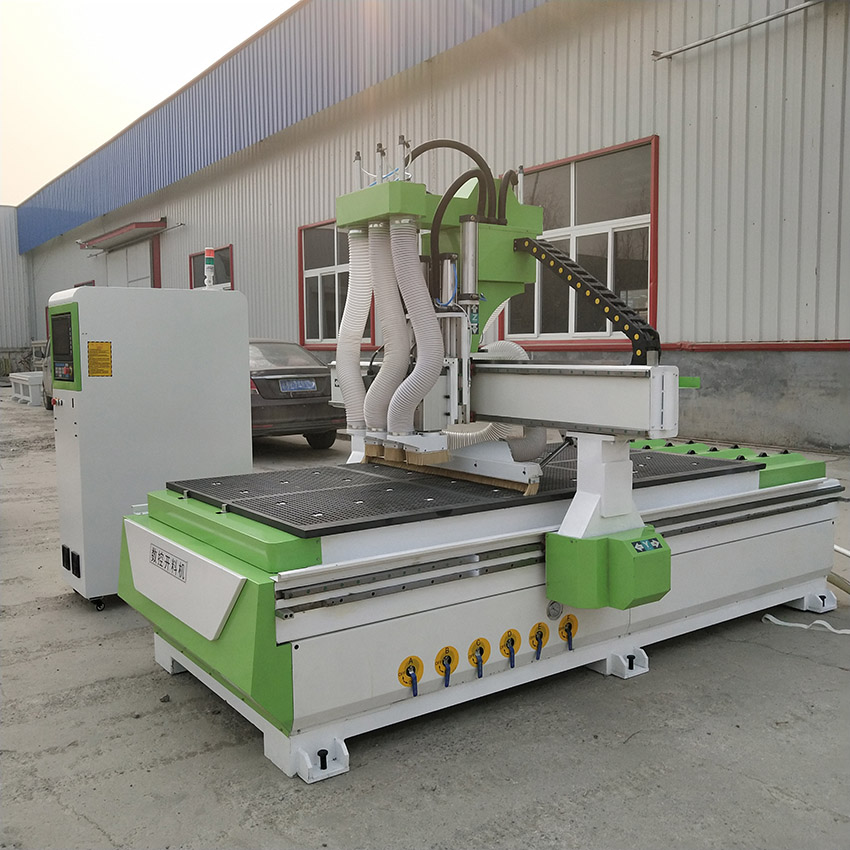

Multi heads Woodworking CNC router machine:
The mechanical and electrical components of this model are international top products, such as the vacuum system and transmission system in Germany, the servo drive system in Japan, the original imported spindle from Italy, etc.; the automatic knife changing system and the tool magazine capacity of 8 / 12The tool change time is only 2 seconds; the double-track bilateral transmission machine is a heavy-duty machining machine.
This machine is suitable for a wide range of complex product processing or various processing, with a wide range of functions: boring, drilling, cutting, side milling, leading edge and so on. A variety of models are available.
Parameters of CNC carving machine:The mechanical and electrical components of this model are international top products, such as the vacuum system and transmission system in Germany, the servo drive system in Japan, the original imported spindle from Italy, etc.; the automatic knife changing system and the tool magazine capacity of 8 / 12The tool change time is only 2 seconds; the double-track bilateral transmission machine is a heavy-duty machining machine.
This machine is suitable for a wide range of complex product processing or various processing, with a wide range of functions: boring, drilling, cutting, side milling, leading edge and so on. A variety of models are available.
 |
 |
| Application of wood cnc router: | |
| 1 | Furniture: wooden doors, cabinets, panels, office furniture, tables, chairs, doors and windows. |
| 2 | Wood products: speakers, game cabinets, computer desks, sewing machines, musical instruments. |
| 3 | Decoration industry: boring and milling of soft metal plates such as stone, graphite, acrylic, PVC, MDF, artificial stone, plexiglass, plastic,and copper and aluminum |
| 1 | Model | EK1325 three heads cnc engraver |
| 2 | X, Y axis travel | 1300x2500mm |
| 3 | Z-axis travel | 200mm |
| 4 | Maximum operating speed | 30m/min |
| 5 | Maximum engraving speed | 25m/min |
| 6 | Resolution | 0.01mm |
| 7 | Repeatability | 25m/min |
| 8 | Clamping method | Vacuum adsorption |
| 9 | Engraving instruction | G code |
| 10 | Control System | Mountain dragon |
| 11 | Operating Voltage | AC380V/50Hz |
| 12 | Spindle power | 9KW |
| 13 | Spindle speed | 1000-24000rpm/min |
| 14 | Way of working | Servo Taiwan rack |
| 15 | Running rail | Triaxial full square rail |
