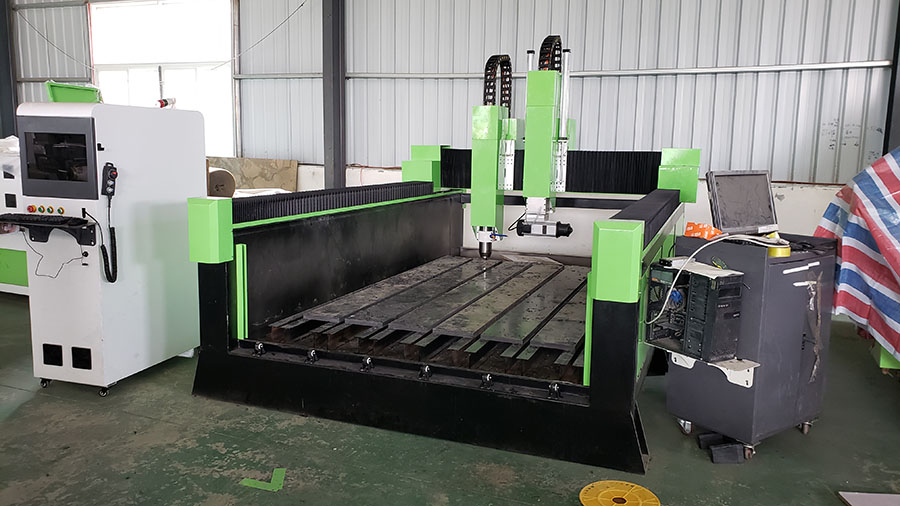

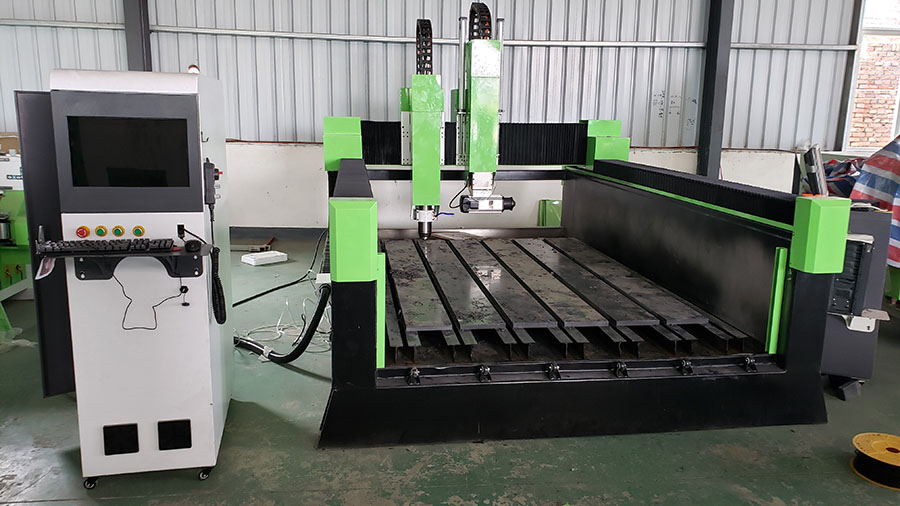

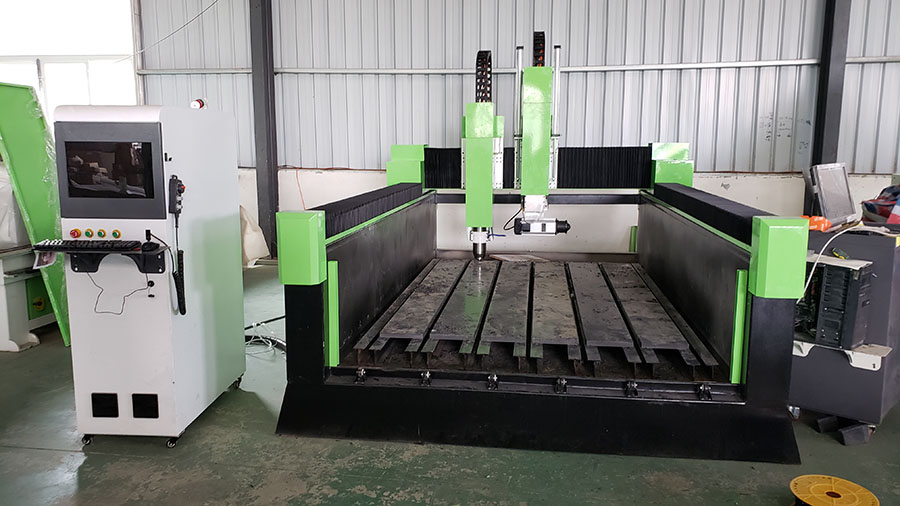

Two heads stone graving machine
Two heads stone graving machine
 |
 |
 |
| Performance characteristics: | |
| 1 | It adopts Taiwan linear square guide rail, double row and four row sliders, large bearing capacity, stable operation, no jitter, no vibration, high precision, long life and accurate lower knife. |
| 2 | The whole machine adopts steel structure to seamlessly weld the heavy bed, the rigidity is good and the deformation is not good, the work surface is backed by the steel plate, the strength is large and the rigidity is good, and the bearing capacity of the machine can reach more than one ton. |
| 3 | Double-head high-power water-cooled spindle motor with high cutting force and high efficiency. |
| 4 | Software compatibility, compatible with a variety of CAD / CAM design software such as Typ3 / Artcam / Castmate / Wentai. |
| 5 | Two-way tool cooling system to effectively improve tool life. |
| 6 | The three-axis is equipped with dust-proof design to effectively protect the machine drive and position the original parts, so that they can maintain a good working condition and are not affected by cooling water and dust. |
| 7 | Using automatic oil lubrication system, self-maintenance slider rail, the whole machine is maintenance-free, improve the service life of the machine. |
| 8 | High-precision rack drive, high transmission accuracy, speed, strength, and smooth processing. |
Application range:
It is mainly used for three-dimensional relief and line carving, cutting, chamfering, drilling and two-dimensional engraving of natural marble, granite, artificial stone, tombstone, milestone, tile, glass and other materials. Do not be suitable for tombstone carving, lettering, lines, indoor and outdoor relief, can be used for three-dimensional figures of Buddha statues, stone lions, Chinese watches and other rotating three-dimensional workpieces and ordinary plane carving.
| Parameters of double heads stone cnc router | |
| Machine model | EK1825S |
| Working size | 1800*2500*300mm |
| Working precision | 0.05mm |
| Repeatability | 0.05mm |
| Worktable structure | Aluminum profile worktable |
| Idle moving speed | 15m/min |
| Spindle power | 4.5KW water cooling spindle |
|
Spindle speed
|
0-24000RPM |
| Drive type | High speed stepper motor |
|
Operating Voltage
|
AC380V/50HZ |
| Engraving order | G CODE |
| Control system | Ncstudio control system |
