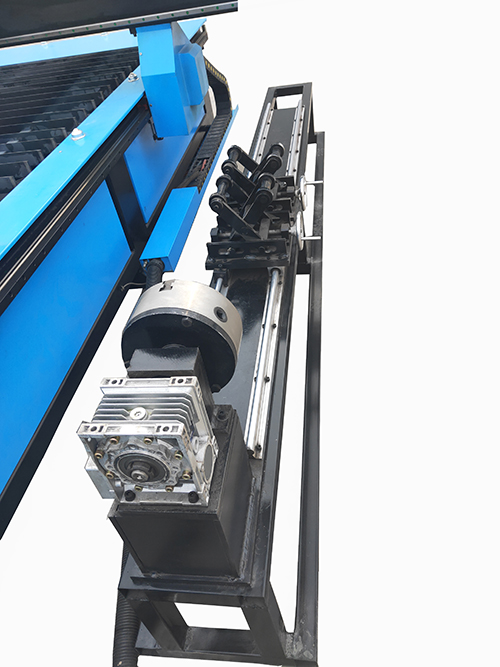

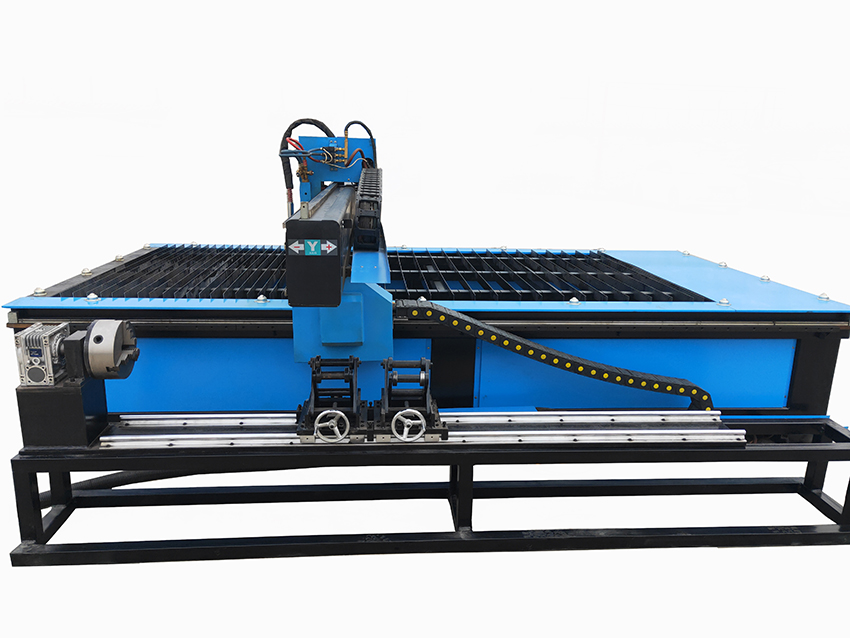

Plasma metal pipe and sheet cutter
EK-1530PT
Plasma Machine Feature
Plasma Machine Feature
1 .The machine is all welded as seamless steel structure. Steady structure and long life time.
2. High configuration, high cutting speed and precision.
3. Auto ARC starting. Steady performance.

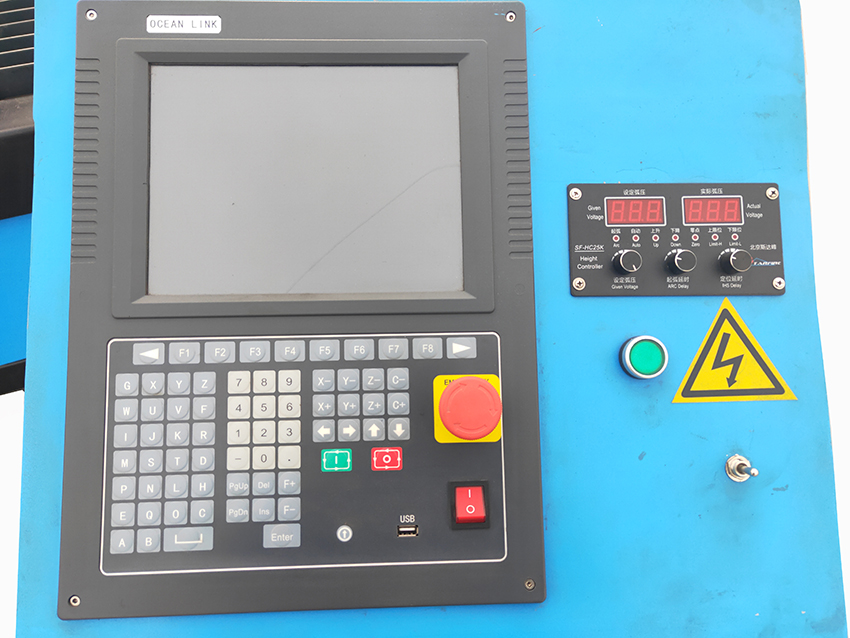

4.Control system: DSP handset control, with USB interface
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet,titanium plates, and so on.
6. File format: G-code
7.Suitable Software : Artcut, Type3, ArtCAM. Beihang Haier.
 |
 |
Plasma Machine Application:
Processing shells of machinery and electronic products,
advertising signs, crafts, iron garden, car manufacture,
iboat building, electrical accessories, board cutting.
advertising signs, crafts, iron garden, car manufacture,
iboat building, electrical accessories, board cutting.
plasma Machine Applicable materials
Iron plate, aluminum plate, titanium, stainless steel plate, galvanized sheet,
white steel plate, metal materials.
Plasma Machine Technical Parameter:
| Model | EK-1325/1530PT |
| X,Y working area | 13000mm*2500mm/1500*3000mm |
| Z working area | 150mm |
| Lathe bedS | Steel structure with water sink |
| Machine Power | 8.5kw |
| Working voltage | 380V/50HZ |
| Reposition precision | 0.05mm |
| Processing precision | 0.1mm |
| Maximum cutting speed | 300mm/s |
| Torch Height control mode | HYD/ Start/ air cylinder |
| Cutting thickness | 0-40mm |
| Plasma power supply | China LGK-63A/100A/200A OR Hypertherm Plasma power supply made in USA 65A/85A/105A/200A |
| Control system | Start/ SJTU-CNC/Hypertherm etc |
| Motors | Stepper/ servo |
| Software | ARTCUT, Fastcam etc |
| Weight | 1600kg |
Option:
1.Different working size: 1300X2500MM /1500X3000MM /2000X4000MM
or other sizes according to customers’ needs
2.Servo motors and drivers
3.Different power: 65A / 100A / 130A /200A for different thickness cutting
4.Torch Height control system
Lathe bed steel structure with water sink
